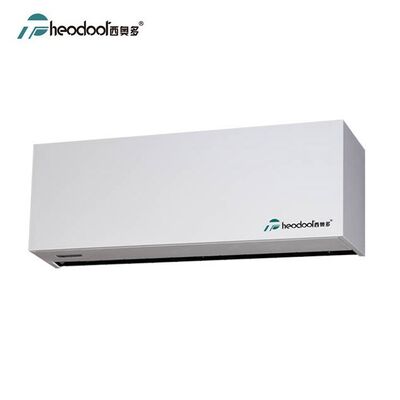

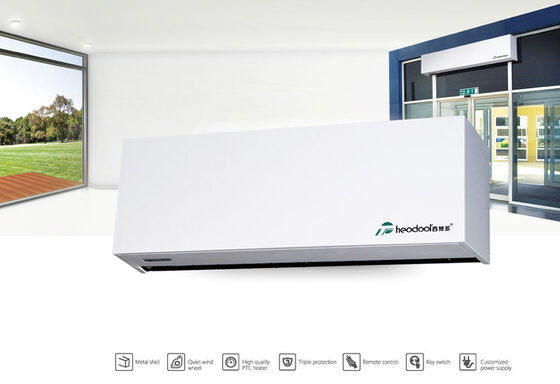

Theodoor Centrifugal High Power Heating Air Curtain With Heat and Cold Switch
Safety and energy saving
The use of high heat, low power consumption, low wind resistance, long life PTC heater, has the advantages of high thermal efficiency, safety, no open flame, no oxidation, etc.
Fast speed, strong wind
It adopts silent centrifugal worm gear, high-speed motor, strong wind, superior performance, and the effective installation height can reach 3.5-4 meters.
High performance and safety protection
The fuselage shell is an all-metal shell, with high fireproof performance, wind from the top and the wind from the bottom, luxurious and beautiful. Equipped with triple safety protection functions of thermostat, pressure sensitive protector and fuse.
Cold and hot switch, easy to operate
Adopt brand-new remote control and key switch, remote control automatic switching between cold and heat, automatic shutdown protection with delay, and has high and low two-level speed control functions.
Technical data
|
Model
|
Dimensions |
Rated Freq |
Rated voltage |
Motor Power |
Heater Power |
Air Velocity |
Air Volume |
Niose |
Weight |
|
(mm) |
(Hz) |
(v-) |
(W) |
(kW) |
(m/s) |
(m³/h) |
(dB) |
(kg) |
|
|
RM-4009S-3D/Y |
900×350×240 |
50/60 |
380 |
410 |
12 |
10-12 |
1680-1980 |
<55 |
26 |
|
RM-4012S-3D/Y |
1200×350×240 |
50/60 |
380 |
520 |
16 |
10-12 |
2270-2690 |
<56 |
32.5 |
|
RM-4015S-3D/Y |
1500×350×240 |
50/60 |
380 |
670 |
20 |
10-12 |
2870-3390 |
<58 |
41.5 |
|
RM-4018S-3D/Y |
1800×350×240 |
50/60 |
380 |
780 |
22 |
10-12 |
3310-3680 |
<60 |
49 |
|
RM-4020S-3D/Y |
2000×350×240 |
50/60 |
380 |
780 |
24 |
10-12 |
3310-3680 |
<62 |
52.5 |
Theodoor Company is a professional manufacturer engaged in the research, development, production, sale and service of Air curtain, Heat pump water heater and ventilating system. We supply many series of products, suitable for different environments; with superior performance, attractive design and fine workmanship. Theodoor has gained ISO9001 international quality management system and ISO14001 Environmental management system certification. The products are qualified with CCC, CE, CB, ROHS, SAA and UL certifications.
OEM, ODM
Label, box design
Shipping arrangement
After sales spare parts support
What's the main functions of Air Curtain?
1. Dust-proof, insect prevention
2. Isolate the smell
3. Energy saving
4. Comfortable heating
How to select suitable air curtain?
There are many factors that we have to consider when selecting an air curtain, some of which are listed below:
1. Application
2. Door height
3. Door width
4. Outside wind
5. Building static pressure
6. Door structure
7. Ambient temperature
8. Air curtain size
9. Air curtain design and look
10. Noise level
11. Power consumption
Why choose Theodoor Air Curtain?
Quality: High quality performance, more than 18 years manufacturing.
Design: Fashion and utility. More than 100 models air curtain, suitable for different environments.
Reliability: Lifetime testing lab in the factory. Enable long life time operation, continuous working 5000 hours without default.
Engineer: Professional R&D and engineer teams focus on Air curtains.
Machinery & technology: Advanced mould machines and equipments ensure products performance and reliability.
Materials and Quality: At every stage, from raw materials to the end products we insist on results: safety, efficiency, energy
conservation and environmental protection, and our rigorous testing ensures that we reach standards higher than similar products.
We want consumers to depend on the precision and reliability of our Air Curtain machinery.
Quality control: 100% product performance testing.
Cost saving: We provide long-life and high reliability air curtains with excellent quality and better performance, resulting in
increased cost saving.
